Architecture governance generates data continuously. Every review, finding, approval, exception, ADR, remediation, and re-review adds another piece of evidence.
In the previous article, Compliance & Evidence Reports — Proving Architecture Governance, I focused on preserving that information so the organization can explain what happened. That is essential. But evidence becomes even more valuable when it can influence what happens next.
Once governance data accumulates across repositories, teams, and architecture decisions, the question changes from:
“Can we prove what happened?”
to:
“What should we do with what we now know?”
That is where governance begins to become architecture intelligence.
Architecture teams cannot look everywhere at once
Enterprise architecture has a resource problem: architecture teams have limited attention, while development activity does not. Large organizations may have tens, hundreds, or thousands of repositories changing continuously, each introducing new dependencies, integrations, messaging patterns, data access approaches, and operational behaviour.
Manual review of everything turns governance into a bottleneck. Reviewing too little allows drift to accumulate unnoticed. A more useful model is to apply architecture attention where the evidence indicates that it will create the most value.
A current compliance number is useful, but it is not enough. Several signals need to be considered together.

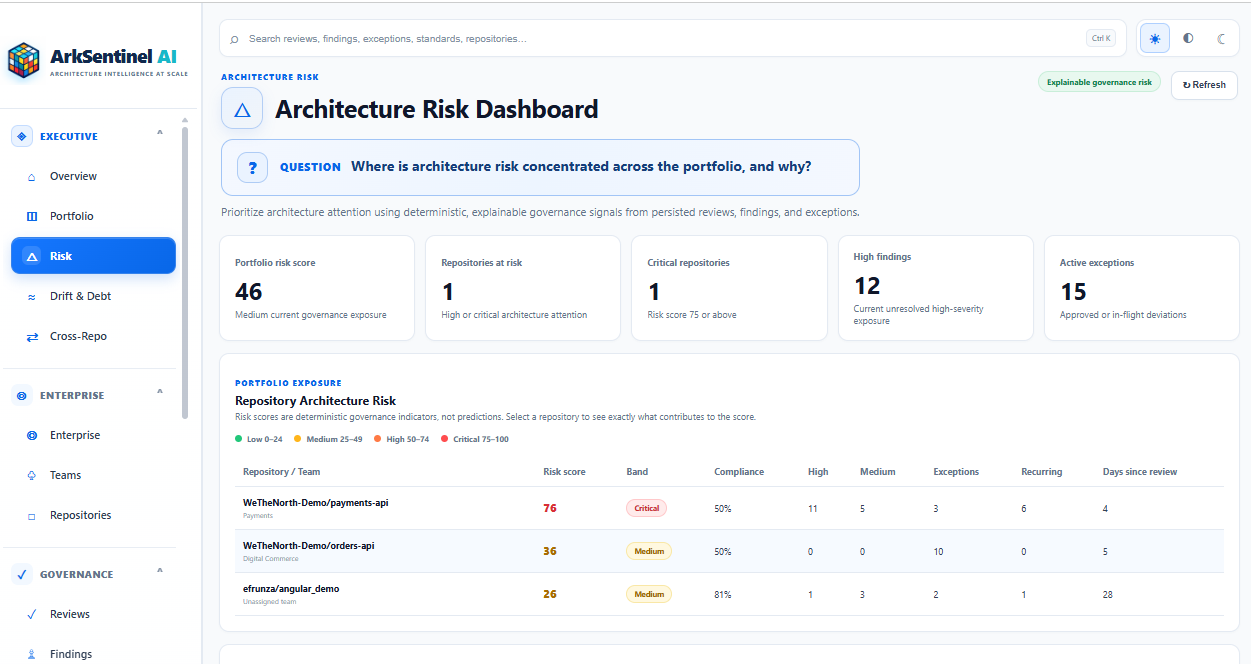

The first signal: architecture risk
ArkSentinel's Architecture Risk Dashboard provides an enterprise-level view over governance data. Its purpose is not simply to count findings. It helps answer a more useful question:
Where should we pay attention first?
A repository with one low-impact finding is different from one with repeated high-impact governance problems. A stable team is different from one showing increasing risk. A domain with several affected repositories may deserve more attention than an isolated implementation issue.
At the pull-request level, governance asks, “Does this change comply?” At the portfolio level, it asks, “Where is architecture risk accumulating?” Both questions matter.
Risk should guide attention, not replace judgment
Risk scoring should prioritize human attention, not automate architecture decisions. Two repositories with the same compliance score can represent very different situations. One may have several findings that are actively being corrected; another may have fewer findings but at a critical architectural boundary.
Risk therefore becomes most useful when interpreted together with direction, debt, repetition, governance cost, and decision history.

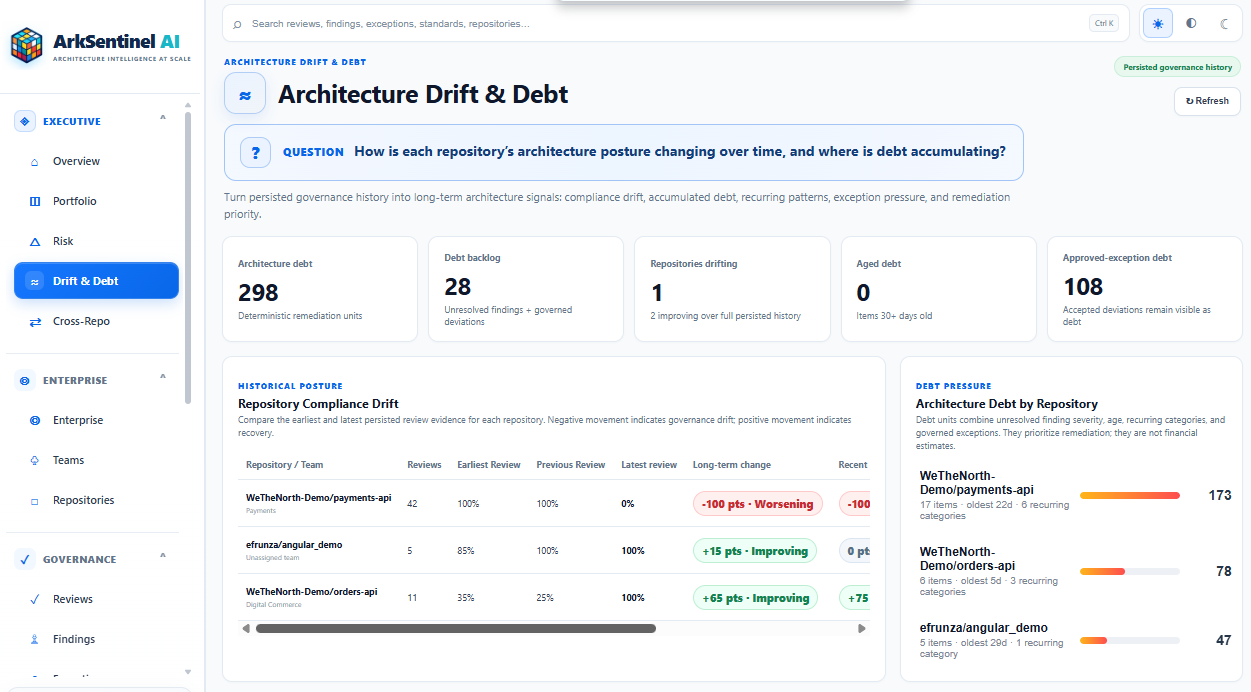

The second signal: architecture direction
A snapshot tells us where we are. A trend tells us where we are going.
Suppose two repositories both show 80% compliance. Repository A previously had 60%; Repository B previously had 95%. The current number is identical, but the architecture trajectory is not. One appears to be improving; the other appears to be deteriorating.
This was the motivation behind Architecture Drift & Technical Debt. ArkSentinel can compare earlier, previous, and latest review states so architects can see whether posture is improving, stable, or declining.
Direction changes prioritization. A system that is improving may require monitoring; one that is consistently deteriorating may require intervention.
Architecture debt makes the consequences visible
An unresolved finding is not just a temporary failure. It can become an obligation the organization has chosen not to resolve yet. Across repeated reviews, those obligations can accumulate into architecture debt.
A missing idempotency pattern, weak retry handling, or unclear transaction boundary may each seem manageable in isolation. Across several services, however, they can combine into a larger operational and architectural problem.
Drift & Debt keeps those obligations visible and creates another decision question: Where is architecture debt accumulating faster than we are resolving it?

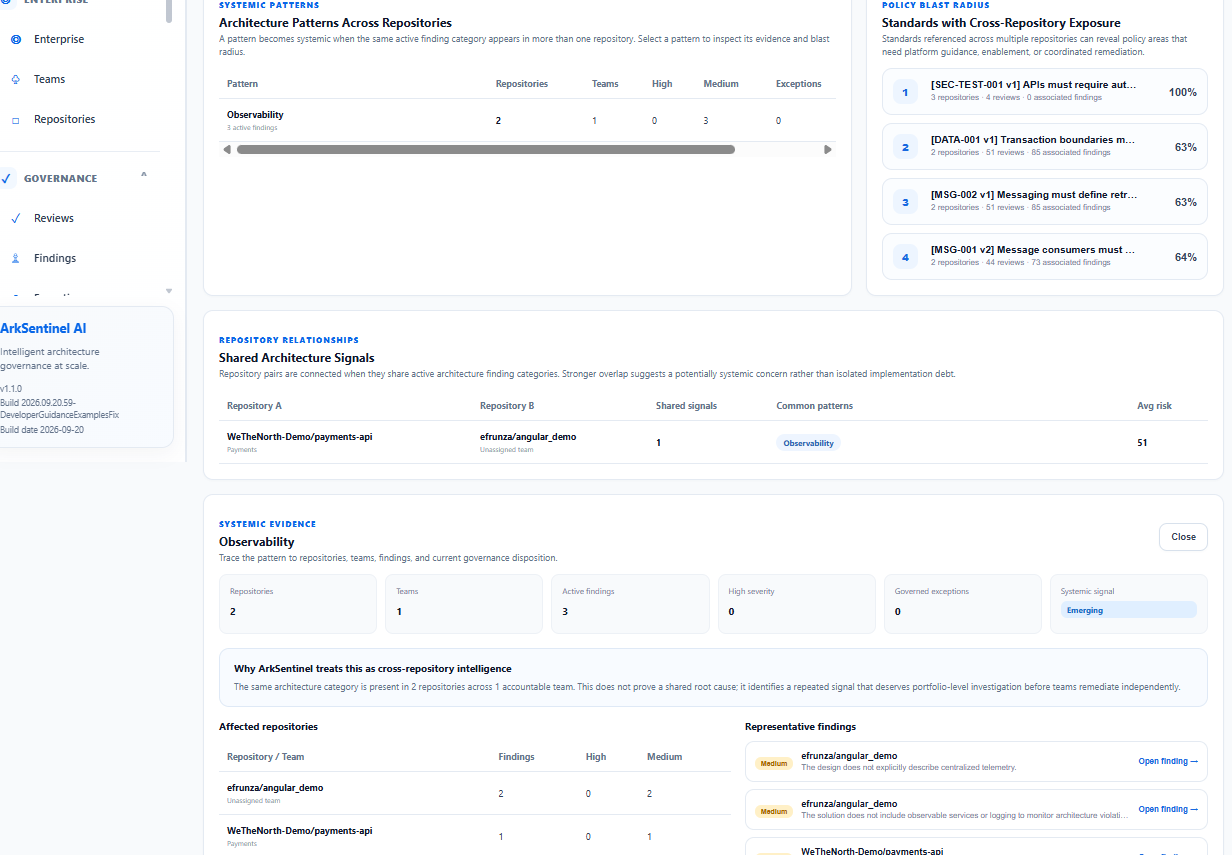

The third signal: repetition across repositories
Some architecture problems are local. Others only look local until enough evidence exists.
If payments-api receives an idempotency finding, then orders-api receives a similar one, and pricing-api begins showing the same pattern, three separate development issues may actually be one enterprise architecture problem.
Cross-Repository Architecture Intelligence allows those patterns to emerge across repository boundaries. The question becomes: Is this an isolated implementation mistake, or a recurring organizational pattern?
For one repository, the right response may be to fix the code. Across several repositories, the better response might be to clarify the standard, improve developer guidance, provide stronger examples, create a reusable platform capability, introduce a reference architecture, or reconsider whether the standard itself is practical.
The evidence creates an opportunity to treat the root cause instead of repeatedly treating symptoms.

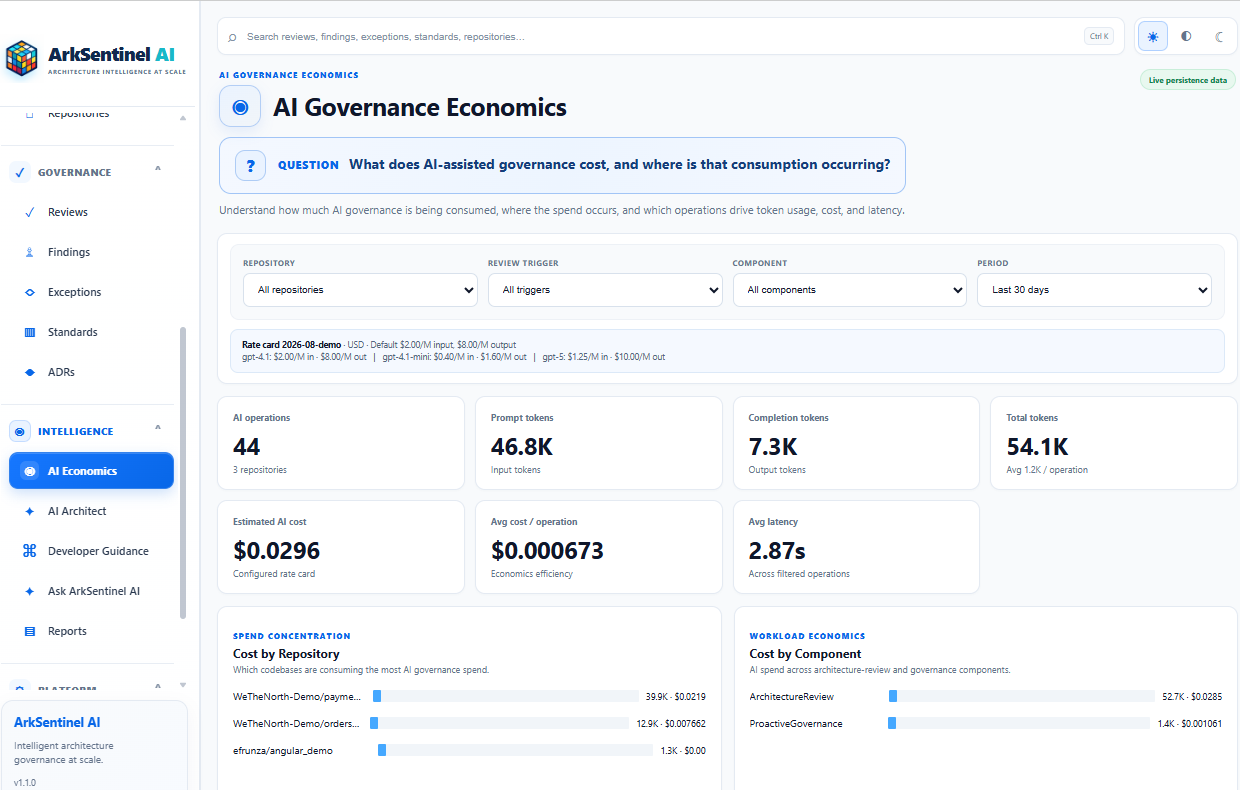

The fourth signal: architecture governance economics
Phase 2 also added a signal that architecture governance platforms rarely expose: the economics of governance itself.
ArkSentinel's AI Governance Economics capability tracks AI-related usage, cost, and token consumption, with attribution by dimensions such as team, author, and model, together with unit-economics and forecasting views.
Why does that matter to architecture decision-making? Because governance effort is not free. If a recurring pattern continuously requires AI review, developer remediation, and re-review, that cost may indicate an opportunity for a better architectural solution.
The purpose is not to penalize teams for consuming governance resources. The useful question is: Where are we repeatedly spending governance effort, and what architecture improvement could reduce that effort while improving outcomes?
The fifth signal: architecture decisions themselves
ADR Governance adds another layer of context. Risk, drift, and findings describe what is happening; ADRs describe what the organization intentionally decided should happen.
Consider ADR-001 — Use Event-Driven Integration for Payment Processing. If a repository violates a standard linked to that ADR, the finding represents more than a generic policy violation. It shows divergence between an accepted architecture decision and the implementation.
An architect can now ask not only, “Is the code compliant?” but also, “Is the architecture we decided upon actually being implemented?”
The sixth signal: audit and evidence quality
Compliance & Evidence Reports add another perspective. Two teams may both appear technically compliant, yet one may have complete decision history, clear approvals, valid exceptions, and traceable ADR relationships while the other has evidence gaps and poorly documented decisions.
Those teams do not have the same governance posture. Weak evidence can indicate an operating-model problem even when code compliance looks strong. The intervention may not be to fix the software, but to improve how architecture decisions are made and recorded.
One system, multiple questions
What became interesting while building Phase 2 was how these capabilities began reinforcing one another.
The Architecture Risk Dashboard asks: Where should we focus? Drift & Technical Debt asks: Are we getting better or worse? Cross-Repository Intelligence asks: Is this problem local or systemic? AI Governance Economics asks: Where are we spending governance effort? ADR Governance asks: What decision should govern the implementation? Compliance & Evidence Reports asks: Can we prove the outcome and identify evidence gaps?
These are not unrelated dashboards. They are different perspectives over the same architecture governance system.
A hypothetical architecture decision
Imagine an enterprise architecture team sees recurring messaging findings in payments-api, similar findings in orders-api, and the same pattern beginning in pricing-api. Cross-Repository Intelligence shows that the issues are related. Drift shows persistence across several reviews. Architecture debt is increasing. AI Economics shows repeated governance effort on the same class of problem. An existing ADR already establishes the desired architectural direction.
At that point, the most valuable discussion is no longer, “Who will fix these three pull requests?” It becomes, “Why are several teams implementing this pattern incorrectly, and what systemic change should we make?”
The answer might be stronger guidance, a shared library, a reference implementation, a platform service, an updated standard, or a new ADR.
ArkSentinel does not make that architecture decision. It provides the evidence that makes the decision better informed.
Architecture intelligence should support human judgment
This distinction matters especially when AI is involved. It would be easy to reduce architecture decision-making to scores and automated conclusions. That is not the direction I want ArkSentinel to take.
Enterprise architecture decisions depend on context. A temporary compliance decline may reflect an active modernization program. A high exception rate may indicate poor discipline—or that a standard has become unrealistic. A repository generating many findings may be poorly designed—or simply undergoing far more development activity than its peers.
The data needs interpretation. AI can surface signals and explain evidence; the architect remains accountable for the decision.
From escalation-driven to evidence-driven architecture
Without architecture intelligence, governance is often escalation-driven: a problem grows, someone notices, architects investigate, and a decision is eventually made.
With connected governance data, architecture teams can proactively identify deteriorating repositories, recurring policy violations, cross-repository patterns, increasing architecture debt, repeated exception behaviour, governance evidence gaps, and areas consuming disproportionate review effort.
Not every signal requires action. But the architecture team can choose where its limited attention is likely to create the greatest value.
Governance data becomes institutional learning
A single finding helps one developer. A sequence of findings can teach an organization.
Repeated misunderstanding of the same standard is information. Repeated requests for the same exception are information. Similar drift across multiple repositories is information. Rising governance cost around one architectural pattern is information. An ADR that repeatedly requires enforcement is information.
The governance system therefore becomes a mechanism for institutional learning. It does not merely tell teams when they are wrong; it helps the organization understand where its architecture is difficult to implement, difficult to govern, or beginning to diverge.
From data to decisions
The progression is becoming clear:
Pull requests create governance events. Governance events create evidence. Evidence creates history. History reveals trends. Trends expose patterns. Patterns inform architecture decisions.
That is the transformation I wanted from Phase 2. ArkSentinel began as a way to enforce architecture standards during software delivery. It is increasingly becoming a way to understand architecture across the enterprise.
But once architecture decisions are being made using this governance history, another requirement becomes critical. An organization should be able to answer: Who made the decision? What did they decide? What evidence did they have? What changed afterward? Why was that decision considered appropriate at the time?
That brings us to the next article:
Article 15 — The Architecture Audit Trail — Who Decided What, and Why?
