Architecture governance produces evidence continuously. Every pull-request review adds another observation about how a repository relates to the organization's architecture standards. Findings have severity. Exceptions are approved, renewed, or expire. Compliance changes. Repositories accumulate histories.
At first, this evidence is useful for governing individual changes. Over time, however, a much broader question becomes possible:
That is the purpose of the Architecture Risk capability in ArkSentinel AI. The objective is not to predict failure and not to replace architectural judgment with an opaque score. It is to use persisted governance evidence to identify where deeper investigation may be warranted.
Why architecture risk needs more than a failed pull request
A failed pull request is an event. Architecture risk is a broader condition that emerges from multiple signals.
A repository can fail one review, remediate the problem immediately, and return to a strong governance posture. Another repository may continue delivering changes while carrying unresolved high-severity findings, active exceptions, recurring architecture concerns, and declining compliance.
Looking only at the latest review would make those repositories appear more similar than they really are. Architecture risk therefore needs history and context.
- Current compliance posture — how closely the latest effective state aligns with applicable governance expectations.
- Unresolved findings — what architectural concerns remain open.
- Finding severity — whether the unresolved exposure is low, medium, or high impact.
- Active exceptions — where the organization has deliberately accepted temporary deviation.
- Recurring categories — whether the same architectural concerns keep appearing.
- Review recency and history — whether the evidence is current and whether the pattern persists over time.
No single signal should be treated as the answer. The value comes from looking at them together.
From governance evidence to a deterministic risk signal
ArkSentinel's current risk model is intentionally deterministic. The screen itself states that the risk scores are governance indicators, not predictions.
That distinction matters. A predictive model might attempt to estimate the probability of an outage, security incident, or project failure. ArkSentinel is doing something different. It is summarizing governance exposure already present in persisted evidence.

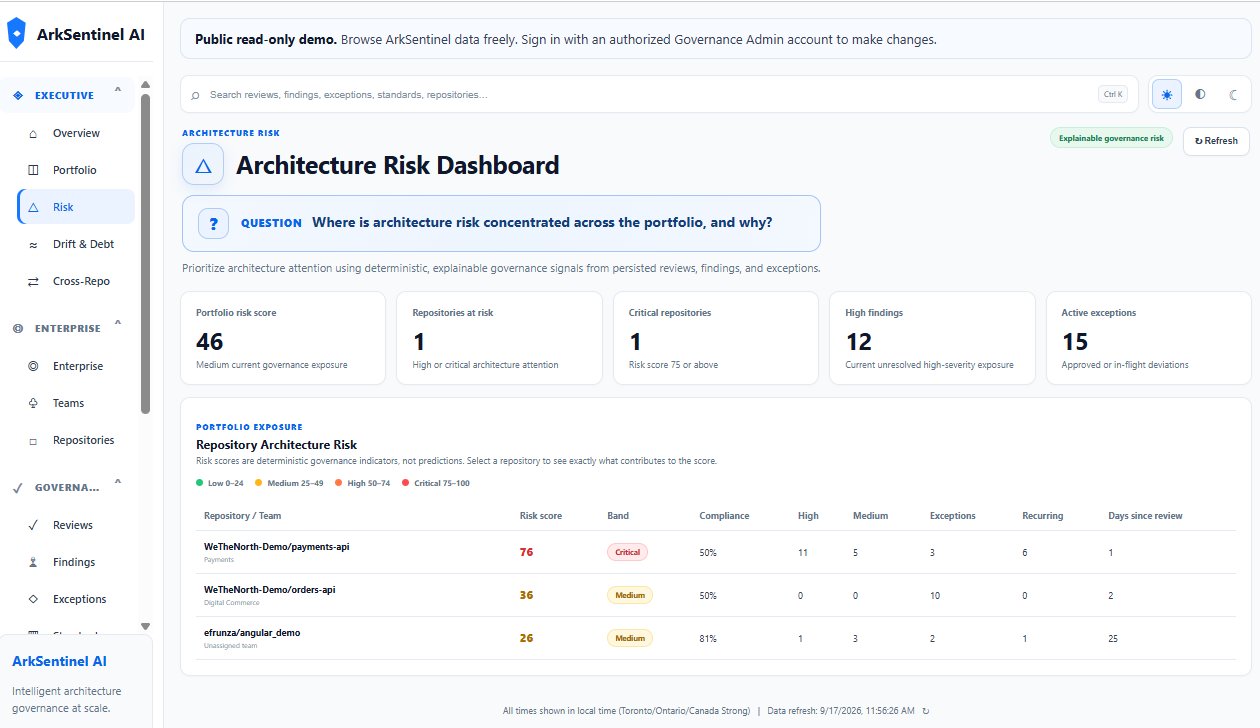

In the current demo portfolio, three repositories are visible. payments-api stands out with a risk score of 76 and a Critical band, while orders-api and angular_demo are in the Medium band. The point is not that 76 is a universal measure of architectural quality. The point is that the score gives the architect a clear place to investigate first.
A risk score should prioritize investigation. It should not make the architecture decision.
What explainable risk looks like in practice
The most important part of the Risk Dashboard is not the number 76. It is the explanation underneath it.

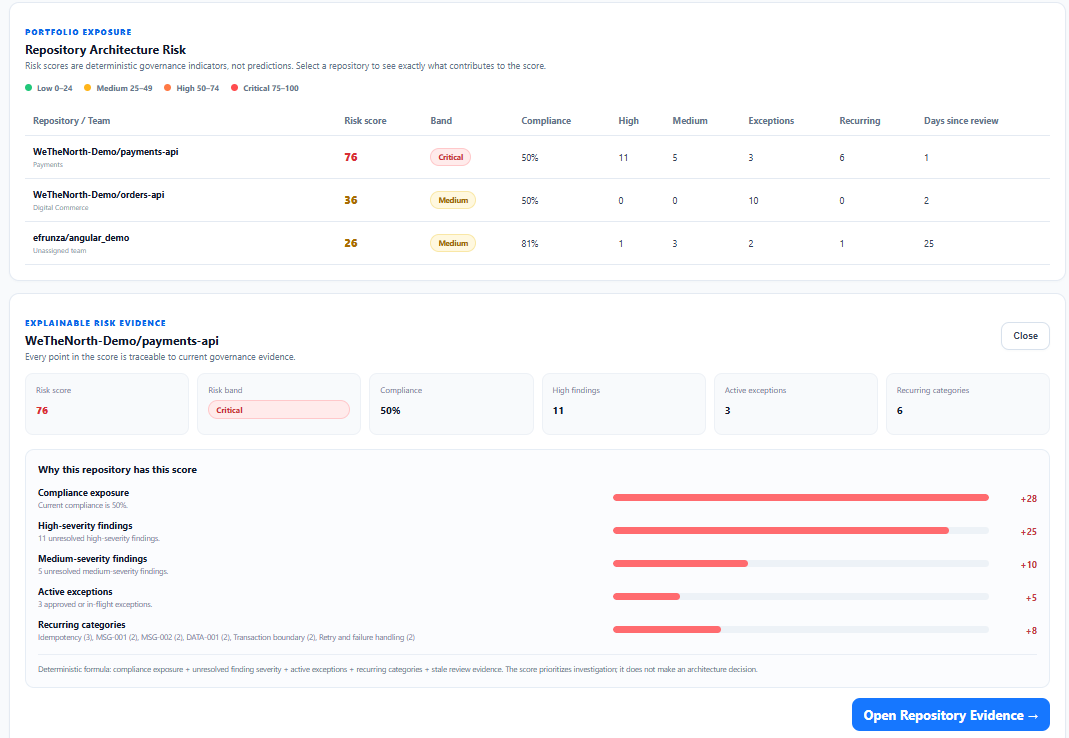

For payments-api, the current screen shows:
- Risk score: 76
- Risk band: Critical
- Compliance: 50%
- High findings: 11
- Active exceptions: 3
- Recurring categories: 6
The score is then decomposed into visible contributors. In the current example, the UI shows +28 from compliance exposure, +25 from high-severity findings, +10 from medium-severity findings, +5 from active exceptions, and +8 from recurring categories. Those visible contributions sum to the displayed risk score of 76.
This is important because the architect does not have to trust a black box. The score can be challenged and understood.
"This repository stands out" becomes "These are the governance signals causing it to stand out."
Why the drivers matter more than the band
Two repositories can have the same risk band for very different reasons. One may be driven primarily by low compliance. Another may have reasonable compliance but several high-severity unresolved findings. A third may be carrying many approved exceptions.
Those conditions should not produce the same architecture response.
- Low compliance with repeated findings may suggest implementation friction or weak adoption of standards.
- High-severity unresolved findings may justify immediate architecture attention.
- A concentration of approved exceptions may indicate modernization pressure or an intentional migration strategy.
- Recurring categories may suggest that the problem is systemic rather than isolated.
This is why the risk band is only an entry point. The drivers determine what kind of investigation makes sense.
Risk must remain traceable to repository evidence
Portfolio-level intelligence is useful only if the architect can move back into the evidence that produced it.

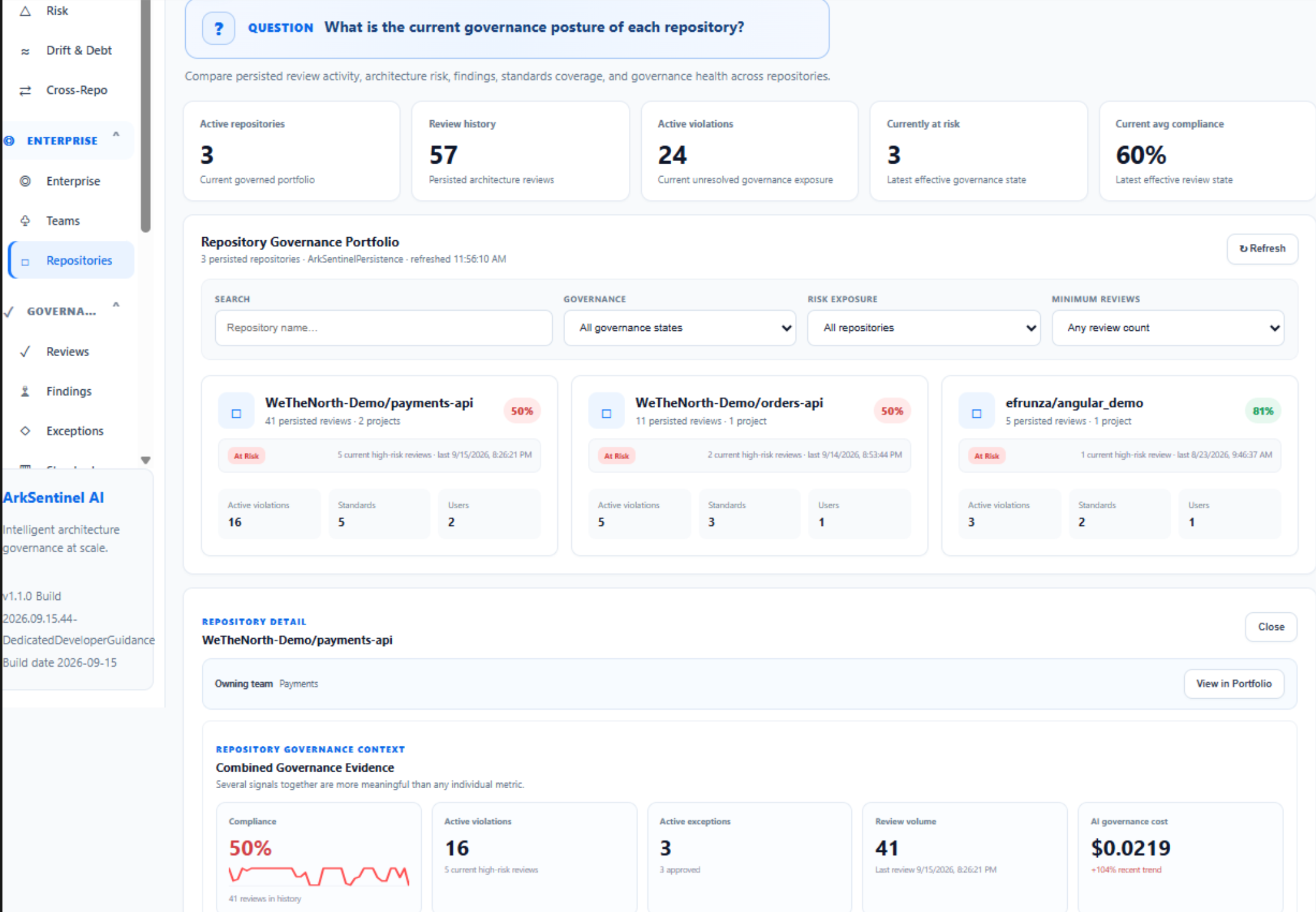

From the Risk Dashboard, the architect can open repository evidence for payments-api. The repository view shows a broader governance context: 50% compliance, 16 active violations, 3 active exceptions, 41 persisted reviews, and the current AI governance cost associated with that activity.
That changes the role of the dashboard. Risk is no longer an isolated metric. It becomes a navigation mechanism into the engineering history behind the signal.
Historical evidence explains why the current posture exists
The repository view adds something that a current-state score cannot provide by itself: history.

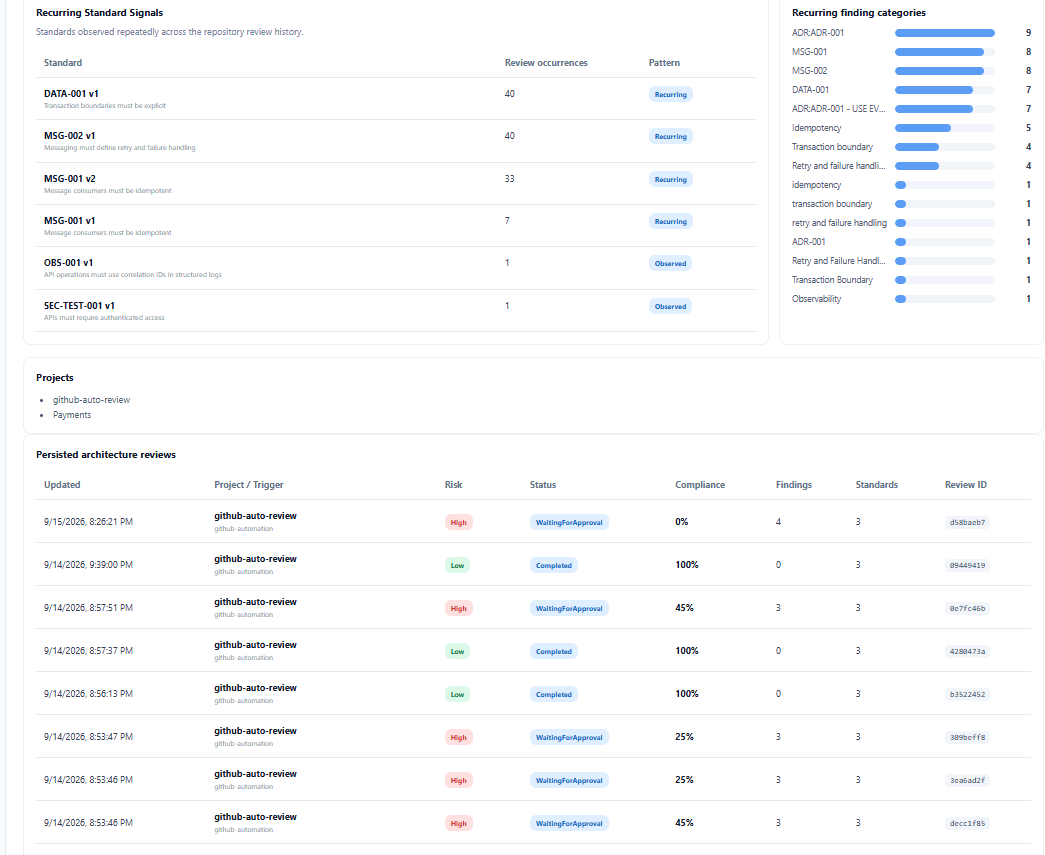

For payments-api, the current demo data shows recurring standard signals across many persisted reviews. DATA-001 v1 and MSG-002 v1 are each observed in 40 reviews, while MSG-001 v2 appears in 33. The repository also shows recurring finding categories and a persisted review history with different compliance and risk outcomes.
Those repeated observations are more important than one failed review. They help the architect determine whether the current exposure is the result of a temporary implementation problem or a pattern that has developed over time.
This is also why recurring architecture categories matter in the risk model. A problem that appears repeatedly carries a different architectural meaning from a one-time mistake.
What architecture leaders should do with a risk signal
A useful risk capability should lead to investigation and, where appropriate, action. But the action depends on the evidence.
- Repeated violations of the same standard may indicate that developers need better implementation guidance.
- A concentration of high-severity findings may require immediate remediation or a focused architecture review.
- Many active exceptions may justify a modernization discussion.
- Recurring concerns across several repositories may indicate a missing shared platform capability.
- A repository already undergoing an intentional migration may simply need monitoring rather than intervention.
The important point is that the system exposes the signal and the evidence. The architect remains accountable for deciding what the organization should do.
Architecture risk is not a team ranking
It would be easy to misuse a risk dashboard as a league table. That would be a mistake.
A repository may carry higher governance exposure for legitimate reasons. It may release more frequently. It may be undergoing major modernization. It may operate in a more architecture-sensitive domain. It may have deliberately approved exceptions as part of a migration plan.
The correct interpretation is contextual.
Risk tells us where to look. Evidence helps us understand what we are seeing. Humans decide what to do about it.
Why explainability matters for enterprise governance
Enterprise architecture decisions often need to be defended to engineering teams, governance leaders, auditors, and executives. A score that cannot be explained creates more questions than it answers.
By exposing the exact signals behind the current posture, ArkSentinel keeps the risk discussion grounded in observable governance evidence. That makes the signal easier to challenge, validate, and use responsibly.
This principle extends beyond Architecture Risk. Portfolio intelligence, drift, debt, cross-repository patterns, and AI-generated guidance are all more useful when the underlying evidence remains accessible.
From current risk to direction over time
Architecture Risk answers a current prioritization question:
But once the architect has identified a repository that deserves attention, another question immediately follows.
Is this repository improving? Has its exposure recently increased? Are exceptions being reduced? Are recurring problems becoming more frequent? Is the current risk posture temporary, or is it part of a longer deterioration?
That is where the next ArkSentinel capability begins: Architecture Drift & Technical Debt.
Risk tells us where attention may be required. Drift tells us the direction of travel. Debt tells us what architectural obligations have accumulated along the way.
