Software architecture is full of decisions: which integration pattern to use, which dependencies to avoid, which standards apply, when an exception is acceptable, and when a remediated pull request may proceed.
Those decisions shape systems for years, but organizations often preserve the resulting code better than the reasoning behind it.
When the answer later becomes “I think…” or “someone approved it,” the organization has an institutional-memory problem, not a technology problem.
A mature architecture governance system should be able to reconstruct important decisions long after the original people, meetings and pull requests are gone.
That is the purpose of an architecture audit trail.
From governance evidence to decision accountability
Article 13 focused on proving governance through standards, reviews, findings, exceptions, ADRs, approvals, and outcomes. Article 14 then used risk, drift, cross-repository patterns, debt, and governance economics as decision-support signals.
Once governance decisions matter more, decision accountability matters more too.
The question is no longer simply:
“What was the final compliance result?”
It becomes:
Who made the decision, what did they decide, when did they decide it, what evidence supported it, and what happened afterward?
Why a final status is insufficient
Consider a pull request that eventually displays a green governance check.
If we inspect only the final state, we may conclude:
“Everything was compliant.”
But the actual history may include a failed review, a high-severity finding, AI guidance, developer remediation, re-review, ADR validation, human approval, PASS, and merge.
The final status is green.
But governance occurred in the transitions.
Without the history, the organization knows the outcome.
With the history, it understands the decision.
Architecture decisions are usually fragmented
Traditional governance scatters evidence across ADRs, wikis, GitHub, spreadsheets or tickets, email or chat, and source code. Reconstructing a decision later can become manual archaeology.
ArkSentinel attempts to make architecture governance a connected system rather than a set of disconnected records.
Who made the decision?
Accountability begins with identity.
But identity alone is not sufficient.
We also need context about the actor's governance role.
In an ADR lifecycle, one person may own the decision, another approve it, and another later audit the history. Likewise, a developer may request an exception without having authority to approve it.
Governance only has meaning when responsibilities are clear.
This distinction becomes especially important when a decision is questioned later. Recording that an exception or ADR was approved is useful, but recording the accountable role, the scope of authority, and the rationale makes the decision defensible rather than merely visible.
In the ADR scenarios I have been using, ArkSentinel can distinguish people participating in roles such as owner, approver and governance administrator.
This matters especially when decisions are controversial later.
“An exception was approved” is incomplete.
“An authorized governance approver accepted this specific exception, for this scope, for this reason, until this date” is an accountable decision.

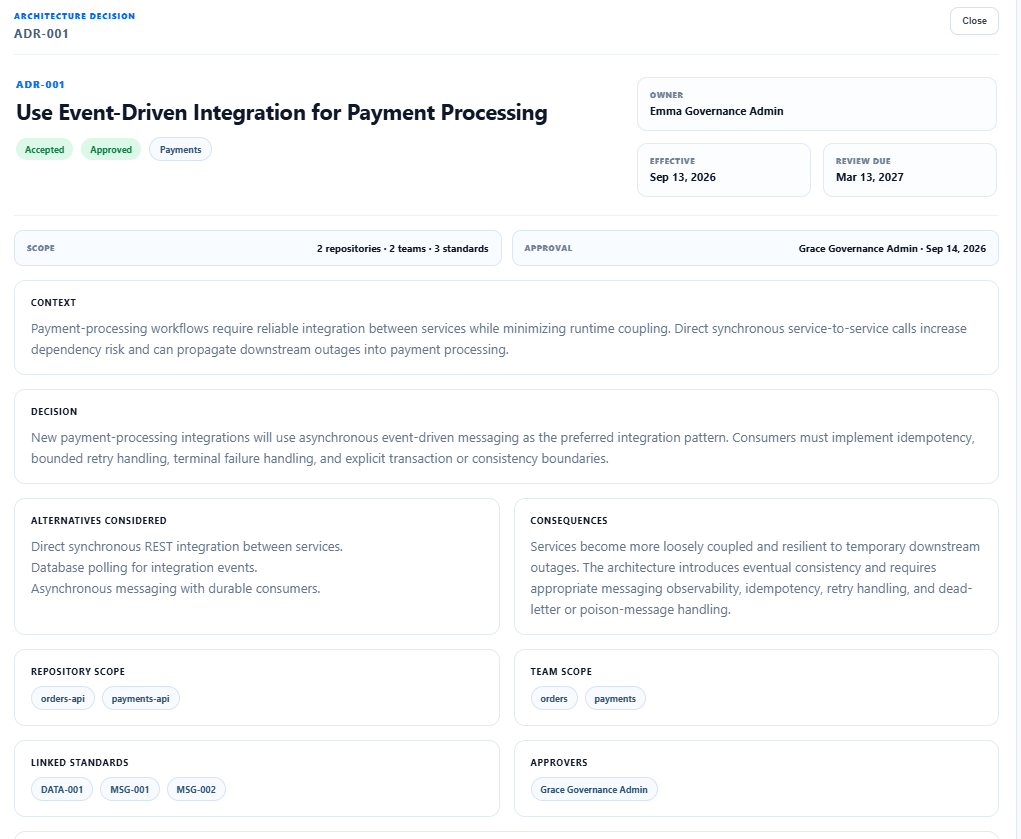

ADR-001 as an audit trail
The ADR scenario used throughout this series provides a useful example.
ADR-001 — Use Event-Driven Integration for Payment Processing
Assume the ADR has already been accepted.
Its scope includes the relevant payment-processing implementation.
A developer creates a pull request in `payments-api`.
The implementation violates an architectural expectation linked to the ADR.
ArkSentinel receives the GitHub webhook automatically.
The review identifies the violation.
The governance check fails.
The developer corrects the implementation.
Another automatic review runs.
The architecture standards become compliant.
The ADR becomes validated against the implementation.
A human approval is recorded.
The GitHub check passes.
The pull request is merged.
The workflow can be summarized as:
This sequence creates an architecture decision history: the accepted decision, the implementation that challenged it, the violation, remediation, later validation, accountable approval, and final delivery outcome.
That is what makes the ADR operational rather than archival.

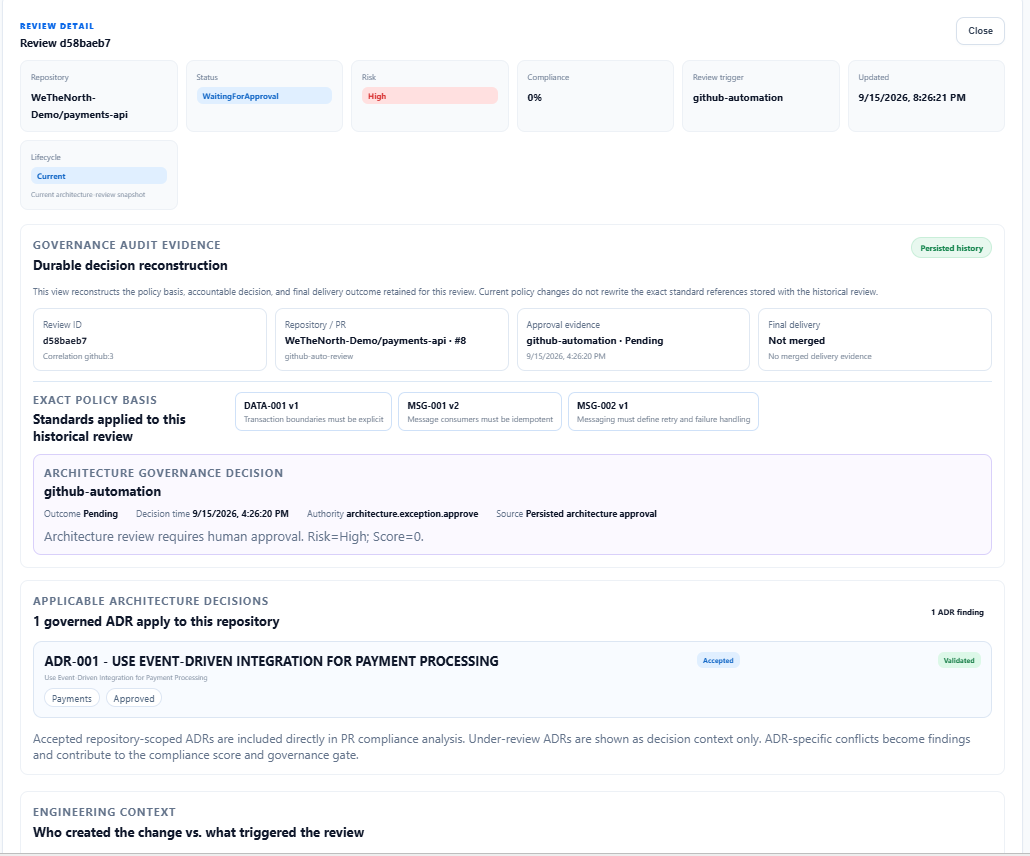

Standards are part of the history
The architecture audit trail must also preserve the policy basis.
Suppose the finding involved MSG-001 v2 for idempotency and MSG-002 for retry/failure handling. If MSG-001 v3 is published later, the historical review must still refer to v2.
Historical integrity matters.
That historical integrity protects more than auditability. It prevents future reviewers from judging an old decision against rules that did not exist when the decision was made, preserving the context required for a fair architectural interpretation.
Exceptions are decisions, not bypasses
One of the most important uses of an audit trail is exception governance.
Architecture standards cannot cover every possible situation perfectly.
There will be cases where a team needs a temporary deviation.
The wrong model is:
“The rule blocks us, so turn it off.”
The governed model is:
“We understand the rule, we understand the deviation, and an accountable person is explicitly accepting that deviation under defined conditions.”
An exception needs durable context: the related finding or standard, requester, justification, scope, approver, approval date, expiry, renewal or rejection history, and whether the implementation eventually returned to compliance.
An approved exception should not disappear into history after the pull request merges.
Expiry is part of accountability
Expiry dates are especially important.
Without expiry, a temporary architecture exception can quietly become permanent architecture.
If a team receives a three-month exception, the issue should eventually be fixed, the exception renewed, or the exception allowed to expire. Simply forgetting it is a governance failure.
By retaining exception status, lifecycle and expiry information, the architecture audit trail can show whether the organization followed through on the original decision.
That changes exceptions from static approval records into time-bound governance commitments.
Rejected decisions matter too
Audit trails should not preserve only successful approvals.
Rejected exceptions are important.
Failed architecture reviews are important.
Rejected or failed governance states are important.
Why?
Because the alternatives considered by the organization often explain the final architecture.
If an exception was requested and rejected, that tells us the organization consciously chose remediation instead.
If an implementation failed several reviews before passing, that tells us the final architecture was not accidental.
Historical governance is richer when it preserves meaningful decision transitions rather than only successful outcomes.
Rejected paths can be valuable evidence because they show that alternatives were considered. A rejected exception, for example, demonstrates that remediation was chosen deliberately rather than happening by accident.

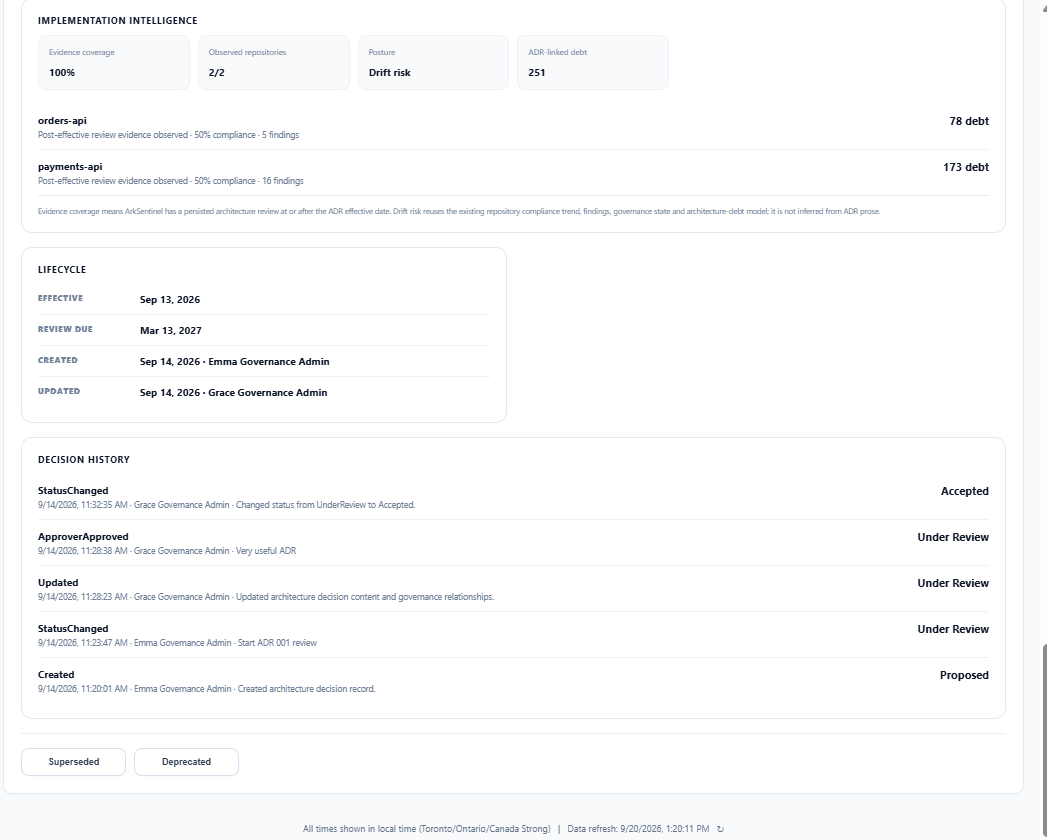

Chronology gives evidence meaning
Individual records become much more valuable when viewed chronologically.
A finding, exception, ADR validation, code change, approval, and successful review are individually useful; viewed as a timeline, they explain the governance story and the order in which decisions and remediation occurred.
Timing can also answer important governance questions.
Was an exception already approved when the pull request merged?
Did approval happen before or after remediation?
Did a change occur while an exception was still valid?
Was the ADR accepted before implementation began or added afterward?
Did a governance decision happen before the architecture policy changed?
These questions cannot be answered from isolated current-state records.
They require history.
Auditability should emerge from normal work
The danger with any audit capability is bureaucracy.
If developers must stop their work and manually fill in multiple governance systems, the process will eventually be resisted or bypassed.
I want ArkSentinel's audit trail to follow a different principle:
Capture evidence where the governance action already occurs.
A pull request, review, finding, remediation, exception approval, ADR lifecycle transition, and governance approval already occur in normal work. The audit trail should record those actions where they happen instead of creating another administrative process.
Auditability then becomes a natural consequence of governance rather than another reporting exercise.
The relationship with Compliance & Evidence Reports
The audit trail and Compliance & Evidence Reports are closely related, but they solve different problems.
The audit trail is the underlying chronology of governance decisions.
The evidence report packages relevant parts of that history for examination, comparison or sharing.
One is the record.
The other is a presentation of the record.
That distinction is important.
A report can answer:
“What is our current governance posture?”
An audit trail can answer:
“How exactly did we arrive here?”
Both are needed.
This distinction also prevents reporting from becoming the system of record. Reports can change format or audience; the underlying decision chronology must remain durable so new reports can always be reconstructed from authoritative governance history.
Architecture memory should outlive individuals
Enterprise systems often outlive their original designers, teams, and organizational structures. The decisions embedded in the software remain, so governance needs institutional memory stronger than individual recollection.
Imagine somebody examining `payments-api` three years from now.
They see an architectural pattern that seems unusual.
Instead of asking around, they should be able to trace the relevant ADR, standards, review, implementation evidence, findings, exceptions, approval, and resulting decision.
The objective is not to preserve every conversation forever.
It is to preserve the parts of the governance process that explain architectural intent and accountability.
Auditability also improves current decisions
There is another benefit.
An audit trail is usually discussed as something needed later.
But knowing that decisions will remain visible can improve decision quality today.
An approver understands that the rationale may be reviewed later.
An exception owner understands that the expiry will matter.
An ADR owner knows that implementation evidence can be connected back to the decision.
A governance administrator can see whether the required process actually happened.
This encourages better discipline without necessarily adding more steps.
The system simply makes existing governance decisions more durable.
That durability can improve present-day behaviour as well. When approvers know that rationale, scope, expiry, and outcomes remain visible, the governance process encourages clearer decisions without requiring an additional layer of meetings or documentation.
From audit trail to enterprise platform
At this point, ArkSentinel's capabilities fit together: pull-request governance enforces standards; versioning preserves policy context; exceptions govern deviations; risk, drift, cross-repository intelligence, and economics provide decision signals; ADR Governance connects intent to implementation; AI Architect supports developers; Compliance & Evidence Reports package evidence; and the audit trail connects those actions through historical accountability.
That is no longer just a pull-request checker.
It is beginning to look like an enterprise architecture governance platform.
The next question is therefore:
What actually makes a governance tool enterprise-ready?
Not simply more dashboards.
It requires a coherent operating model connecting organizations, teams, repositories, standards, decisions, evidence, intelligence and platform operations.
That is where I will go next:
Article 16 — Building an Enterprise Architecture Governance Platform.
